Intel Core I5 8305G Processor Mini Pc With 2 RS232 COM 2 LAN 1 VGA 2 HD-MI For Factory

Intel Core I5 8305G Processor Mini Pc With 2 RS232 COM 2 LAN 1 VGA 2 HD-MI For Factory

Marchio:	Helor PC
Numero di modello:	X114
MOQ:	1 pezzo
Prezzo:	222.38usd
Tempi di consegna:	15 giorni lavorativi
Termini di pagamento:	T/T,D/A,D/P,L/C,Western Union

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Certificazione:

Ce, Rohs, Sgs

Sistema processore:

Nucleo I5 8305G

Metodo di installazione:

Supporta l'installazione su scrivania e a parete

Dimensioni:

210 mm*150 mm*68 mm

Temperatura di conservazione:

Da -30°C a +70°C

Temperatura operativa:

Da -20°C a +60°C

Umidità di stoccaggio:

10% ~ 90%, senza condensa

Imballaggi particolari:

Scatola dei colori

Capacità di alimentazione:

50000 pezzi/mese

Descrizione del prodotto

Intel Core I5 8305G Processor Mini Pc With 2 RS232 COM 2 LAN 1 VGA 2 HD-MI For Factory

Product Introduction of Mini Industrial PC

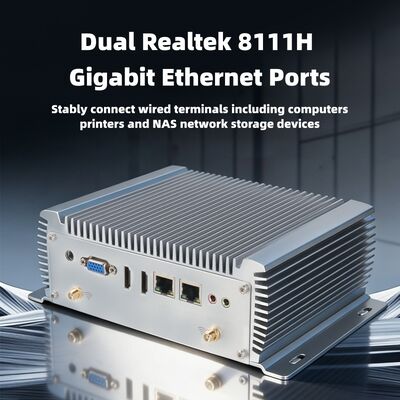

Equipped with Intel Core i5-8305G processor, this mini industrial PC is a multi-functional device integrating computing, serial communication, multi-screen display and

network networking, specially built for industrial production lines, monitoring computer rooms and small office network environments. Dual Realtek 8111H Gigabit

Ethernet ports can connect internal network devices and external network lines separately, adapting to network deployment scenarios such as software routers,

firewalls and data acquisition. It can stably link wired terminals including computers, printers and NAS network storage devices to comprehensively upgrade on-site

network infrastructure. As an industrial-grade device, it comes with 2*DB9 RS232 serial ports onboard, which can connect to industrial peripherals like PLCs, PTZ

cameras and sensors. It stably completes equipment data collection and command transmission, avoiding communication disconnection and data garbled codes in

industrial sites. Equipped with dual 4K@30Hz HD*MI ports plus a VGA port, it supports synchronous triple-screen display to meet the demands of multi-screen split

monitoring and multi-screen office work.

Product Specifications of Mini Industrial PC

Processor System	Core I5 8305G
Memory	2*DDR4 SODIMM, up to 64GB
Network	2*R45 Realtek 8111H
Storage	2M.2 NVME 2280(One of them supports the SATA protocol), 1HDD/SSD
Front Interfaces	1Power Button, 4USB3.0, 4USB2.0, 2COM ports
Rear Interfaces	1DC power input, 2WIFI antenna ports, 1VGA, 2HD-MI, 2LAN ports, 1Microphone jack, 1*Headphone jack
Expansion Slots	1*M.2 2232 WIFI
Power Input	12V-19V
OS Support	Win10, Win11, Linux
Functions	Supports Watchdog and Diskless Boot

Environmental Adaptability of Mini Industrial PC

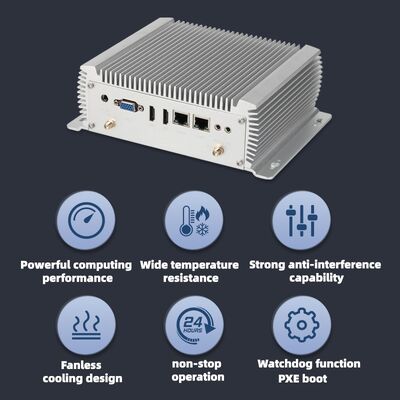

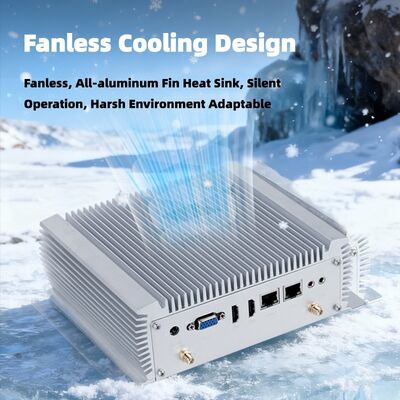

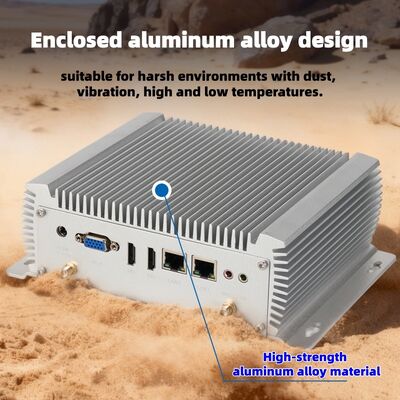

This dual-network & dual-serial port industrial PC boasts outstanding environmental adaptability. It features dustproof, anti-corrosion, shock & impact resistant, wide

temperature resistance performance, capable of operating in all kinds of harsh environments.

Intel Core I5 8305G Processor Mini Pc With 2 RS232 COM 2 LAN 1 VGA 2 HD-MI For Factory 0

Application Scenarios of Mini Industrial PC

This mini PC with RS232 serial ports can work in special factory environments of various workshops and industries. It is widely applied in automated industry, workshop

equipment, financial hardware, automotive assembly, smart transportation, shopping mall self-service terminals and more scenarios.

Intel Core I5 8305G Processor Mini Pc With 2 RS232 COM 2 LAN 1 VGA 2 HD-MI For Factory 1

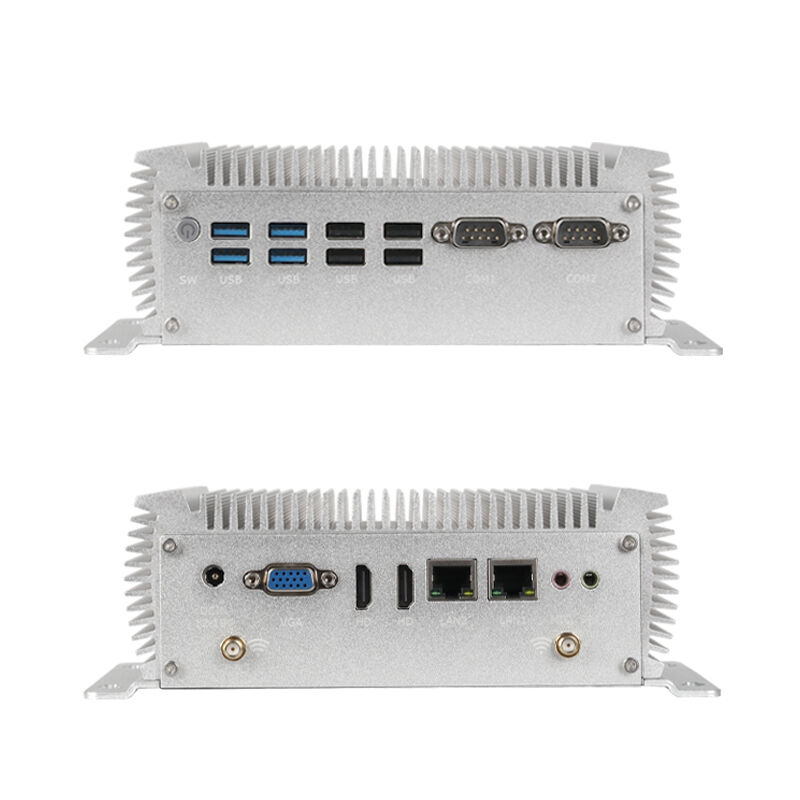

Interface Description of Mini Industrial PC

This industrial PC features abundant interfaces and powerful expandability to satisfy diverse industrial demands. Front interfaces: 1*Power Button, 4*USB3.0, 4*USB2.0,

2*COM ports; Rear interfaces: 1*DC power input, 2*WIFI antenna ports, 1*VGA, 2*HD-MI, 2*LAN ports, 1*Microphone jack, 1*Headphone jack.

Intel Core I5 8305G Processor Mini Pc With 2 RS232 COM 2 LAN 1 VGA 2 HD-MI For Factory 2

Expandable Functions of Mini Industrial PC

This model equipped with Intel Core 1235U processor delivers comprehensive expansion capabilities. It features dual DDR4 SODIMM memory slots, supporting a

maximum expandable memory of 64GB for smooth multi-task parallel processing without lag. For storage, it comes with two M.2 NVMe 2280 slots (one compatible

with SATA protocol) plus a 2.5-inch hard drive bay. Multiple storage combinations meet the demand for large-capacity local data storage. An independent M.2 2232

WIFI expansion slot is reserved. Combined with dual antenna interfaces, a wireless network card can be installed to realize wired + dual wireless networking mode,

enabling flexible deployment even in scenarios with wiring restrictions.
