Intel Core i7 4500U PC With Dual LAN Dual COM and 4 USB3.0 Industrial Mini PC

Name: Intel Core i7 4500U PC With Dual LAN Dual COM and 4 USB3.0 Industrial Mini PC
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: X31 I7 4500U
Price: 179.10 USD
Availability: InStock

Marchio:	Helor PC
Numero di modello:	X31 I7 4500U
MOQ:	1 pezzo
prezzo:	$134.1-$224.7, Negotiable
Tempo di consegna:	7-15 giorni lavorativi
Condizioni di pagamento:	T/T, L/C, D/A, D/P, Western Union, MoneyGram

Informazioni dettagliate

Descrizione di prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

Ce, Rohs, Sgs

Processore:

Compatibile con Intel Celeron, Pentium, Core I3/I5/I7 Haswell/Broadwell Series Processors

Memoria:

1 × SO - Slot di memoria DIMM, Supporto singolo - canale 1600/1333MHz DDR3L 1.35V Memoria, supporto

Misurare:

120 mm × 120 mm

Rete:

2 × Realtek RTL8111H Gigabit Network Sches (1 Wake Network Wake - ON - LAN), Support Network Wake -

Magazzinaggio:

Porta disco rigido da 1 × 7pin SATA3.0, velocità di trasmissione fino a 6 Gbps ， 1 × MSATA3.0 Slot

Sistema:

Windows 7/Windows 10/Linux

Display:

Scheda grafica grafica Intel HD integrata 4400 core ， porta 1 × VGA e porta display HDMI 1 × Support

Espansione:

1 × mini - slot PCIe, supporto WiFi/4G di supporto

Temperatura operativa:

0 ° C ~ 20 ° C.

Temperatura di conservazione:

-20 ° C ~ 70 ° C.

Imballaggi particolari:

Scatola di cartone

Capacità di alimentazione:

50000 pezzi

Evidenziare:

Intel Core i7 industrial mini PC

fanless PC with dual LAN

mini PC with 4 USB3.0

Descrizione di prodotto

Intel Core i7 4500U PC With Dual LAN Dual COM and 4 USB3.0 Industrial Mini PC

Intel Core i7 4500U Dual LAN Dual COM 6 USB Industrial Mini PC Description:

The industrial mini PC features an Intel Core i5 - 5200U processor. It has one 204 - pin DDR3 SO - DIMM slot (up to 8GB), one mPCIe slot (for WIFI/4G), and one mSATA + one 12 - pin SATA for storage. It includes dual LAN ports, six COM ports, and six USB ports (4 USB 3.0, 2 USB 2.0). The device supports VGA and HDMI for dual - screen sync, an ALC897 audio codec, and Realtek 8111H Gigabit NICs. Powered by DC4 - pin ATX, it operates in temperatures from 0°C to 20°C and humidity from 5% - 95%, supporting Windows 7/10 and Linux. It has 2 cores, 4 processing threads, and a turbo frequency of 2.7GHz.

Intel Core i7 4500U Dual LAN Dual COM 6 USB Industrial Mini PC Specification:

Processor	Compatible with Intel Celeron, Pentium, Core i3/i5/i7 Haswell/Broadwell series processors
Memory	1×SO - DIMM memory slot, supporting single - channel 1600/1333MHz DDR3L 1.35V memory, maximum support 8GB
Size	120mm × 120mm
Network	2×Realtek RTL8111H Gigabit network cards (1 network wake - on - lan), support network wake - up/PXE
Storage	1×7pin SATA3.0 hard disk port, transmission speed up to 6Gbps,1×mSATA3.0 slot
System	Windows 7/Windows 10/Linux

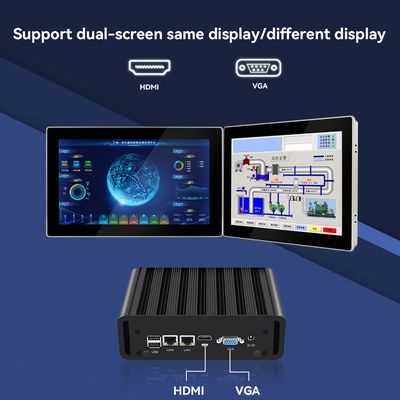

Display	Integrated Intel HD Graphics 4400 core graphics card,1×VGA port and 1×HDMI display port,Support VGA and HDMI synchronous/asynchronous display
Expansion	1×Mini - PCIe slot, support WIFI/4G module
Suitable Temperature	Operation Temperature:0°C ~ 20°C

Intel Core i7 4500U Dual LAN Dual COM 6 USB Industrial Mini PC Details:

This industrial mini PC is designed with a high configuration to meet diverse industrial needs. It features the Intel Core i5 - 5200U processor, with 2 cores and 4 threads, and a maximum turbo boost frequency of 2.7GHz. The device also includes dual LAN ports and six COM ports, making it ideal for applications requiring reliable performance and extensive connectivity options.

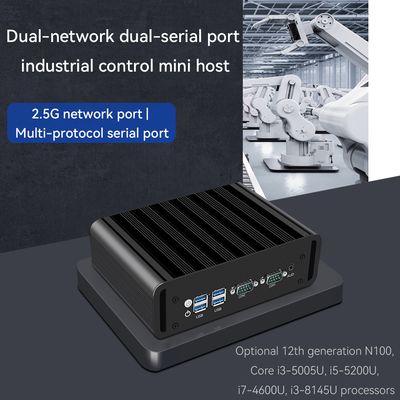

Intel Core i7 4500U PC With Dual LAN Dual COM and 4 USB3.0 Industrial Mini PC 0

Intel Core i7 4500U Dual LAN Dual COM 6 USB Industrial Mini PC Appliance:

Our Industrial Mini PC is applicable for versatile serving numerous application scenarios. It excels in intelligent manufacturing, petroleum and petrochemical, industrial automation, financial institutions, power industry, and transportation industry. In industrial settings, it supports digital signage, multimedia education, turnstile access control systems, and express pickup lockers, offering reliable performance across various sectors.

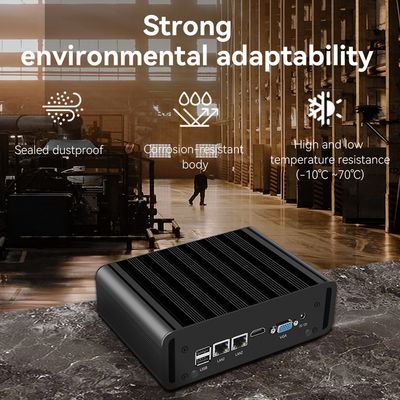

Intel Core i7 4500U PC With Dual LAN Dual COM and 4 USB3.0 Industrial Mini PC 1

Intel Core i7 4500U Dual LAN Dual COM 6 USB Industrial Mini PC Interfaces:

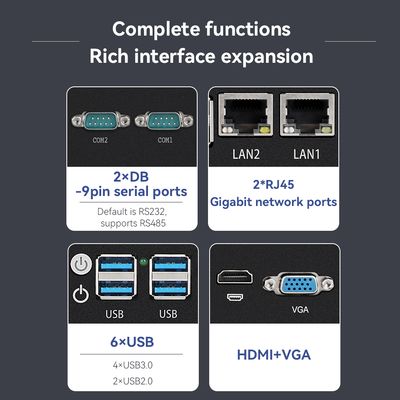

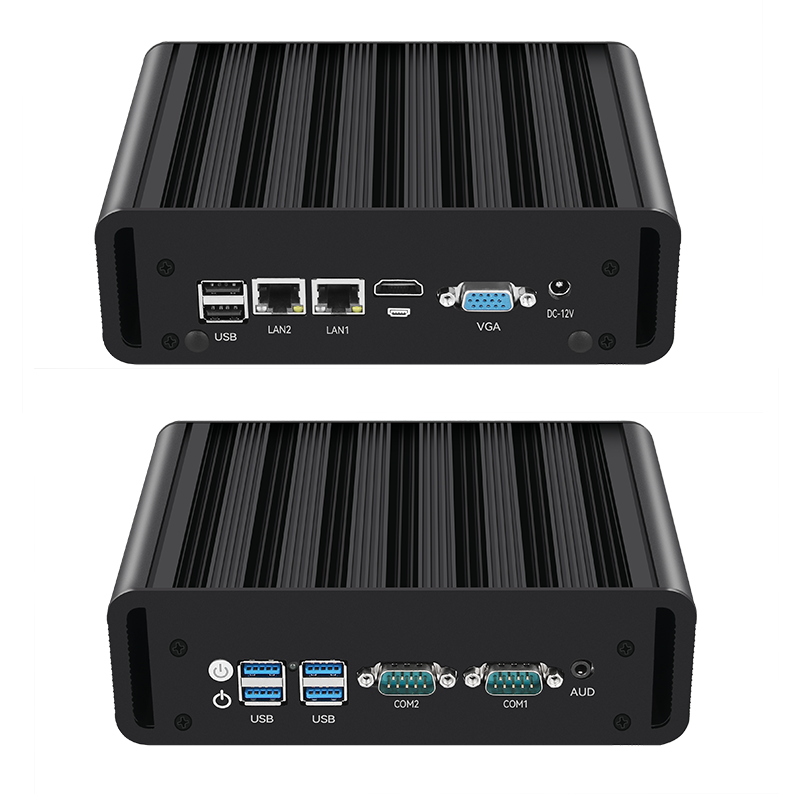

This industrial mini PC is equipped with a wide range of interfaces to meet diverse connection needs. One side includes USB 2.0, 2.5G network ports (LAN1 and LAN2), an HDMI interface, a VGA interface, and a DC - IN power interface. The other side features a power button, USB 3.0 ports, DB9 - RS232/485 serial ports (COM1 and COM2), and an audio input/output interface. These interfaces ensure seamless connectivity with various peripheral devices and facilitate data transmission and interaction in industrial settings.

Intel Core i7 4500U PC With Dual LAN Dual COM and 4 USB3.0 Industrial Mini PC 2
