Intel I5 1135G7 Processor With Six LAN One COM and 1 HDMI Industrial Mini PC

Intel I5 with Six LAN One COM and 1 HDMI Industrial Mini PC Description:

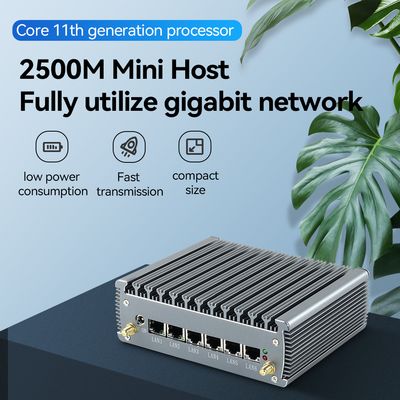

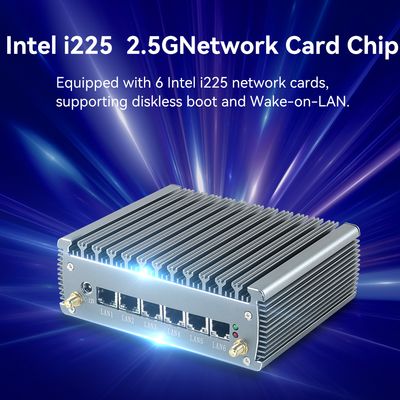

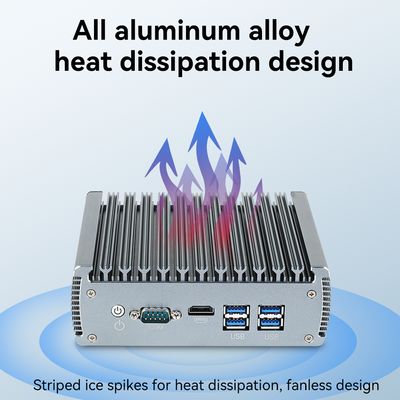

This industrial mini PC is powered by an Intel i5-1135G7 processor and features 6 LAN ports. It also includes 1 COM port and 1 HDMI port. For storage, it supports 1 mSATA and 1 SATA 3.0. Memory support is 2 SODIMM DDR4 3200M, with a maximum capacity of 64GB. The graphics chip is Intel® HD Series Graphics Media Accelerator. I/O interfaces include 2 USB 3.0, 1 HDMI, and 1 COM on the front, while the rear has 1 DC 19V, 6 LAN, and 2 WiFi antenna holes. The network card chip is Intel i225, supporting diskless boot and Wake-on-LAN. There is 1 MINI-PCI-e expansion slot, which supports PCIe and USB 3G/4G communication modules. The compact design measures 155x126x52mm and weighs 0.95KG. It supports wall-mount and desktop installation. The shell is made of aluminum alloy. It operates at a temperature range of 0°C to +60°C (storage temperature: -10°C to +60°C) and can handle 5% - 95% humidity (non-condensing). Compatible with Windows 10/11 and Linux, it is powered by 12V/5A (adapter included). This mini PC is ideal for reliable industrial applications.

Intel I5 with Six LAN One COM and 1 HDMI Industrial Mini PC Specification:

Intel I5 with Six LAN One COM and 1 HDMI Industrial Mini PC Features:

This setup, powered by an Intel Core 11th Generation i5 - 1135G7 processor (4 cores, 8 threads, 2.4GHz base frequency, up to 4.2GHz turbo frequency, and an 8MB L3 cache), offers strong performance, low power usage, and improved compatibility. It's perfect for industrial uses like machine vision, facial recognition, intelligent robotics, and industrial automation.

Intel I5 with Six LAN One COM and 1 HDMI Industrial Mini PC Application:

Ideal for scenarios requiring assigned PPPOE account and certified internet access, such as industrial sites, entertainment venues, commercial establishments, public areas, financial institutions, monitoring systems, express pick - up lockers, and digital signage.

Intel I5 with Six LAN One COM and 1 HDMI Industrial Mini PC Interfaces:

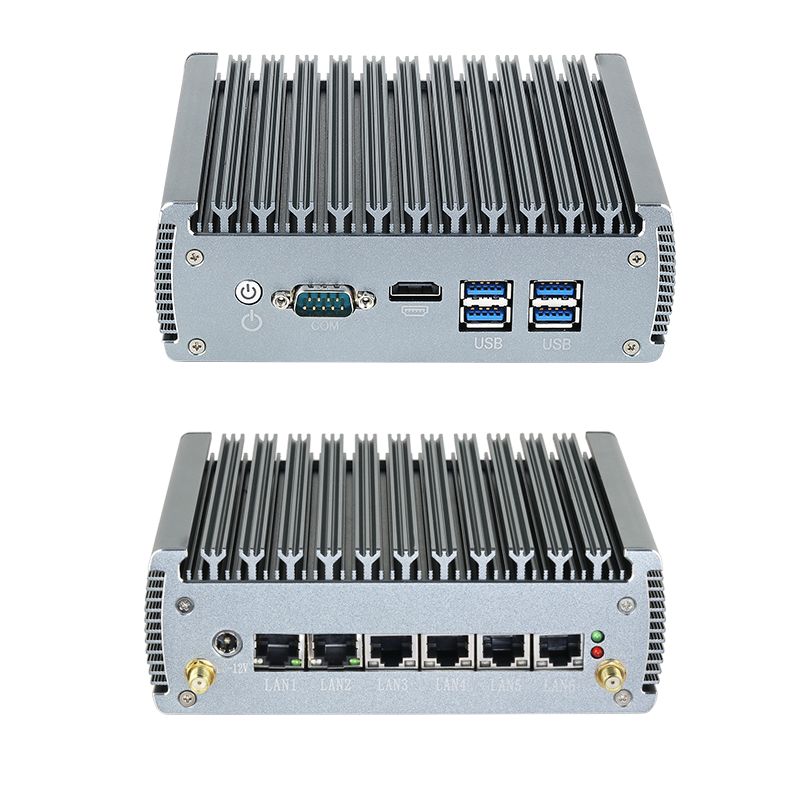

This industrial PC features a well-organized interface layout. The front panel includes a power interface, a COM port, an HDMI port, and two USB 3.0 ports. The rear panel offers six LAN ports (LAN1 through LAN6) and a DC power interface. These connections facilitate smooth integration with industrial devices, peripherals, and networks.
